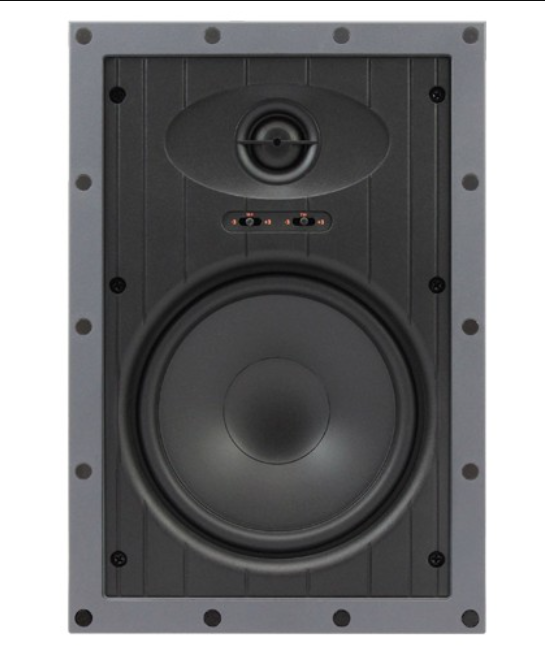

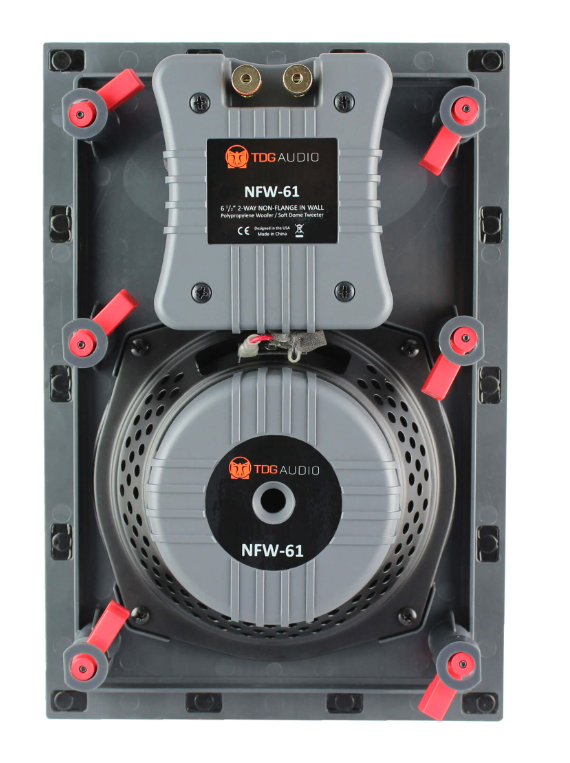

TDG NFW-61

6.5” In-Wall Speaker

Key Features:
• 2-Way Reference Design In-Wall
• Smooth Visual Flangeless System
• PRX™ Poly Resin CrossPoint Molds for Increased Rigidity
• PRX™ Poly Resin Doglegs
• Extra Wide Threaded Screws for Quick Dogleg Fastening
• Large Push Gold Plated Binding Posts
• Dual Coated (Zinc and Powder) Grill firmly attached with Neodymium
• Removable Scrim Cloth
• LIFETIME WARRANTY

Mechanical Specifications:
• Dimension with Grill: 8.5625″ W x 12.3125″ H (217mm W x 313mm H)
• Mounting Depth: 3.1875″ (81mm)
• Cut Out Dimensions: 7″ W x 10.75″ H (178mm W x 273mm H)
• Pre-Construction: Use Vanguard PCBW-6

Acoustic Specifications:
• 6.5” (165.1mm) Polypropylene Trueform™ Woofer
• 1″ (25.4mm) Soft Dome Pivoting Tweeter
• +/- 3db Tweeter & Bass Settings
• 5/100WPC Power Handling
• 87db SPL
• Impedance: 8ohms (-3db woofer switch) / 6ohms (Odb) / 4ohms (+3db)
• Frequency Response 55Hz – 20kHz
