TDG NFC-63

6.5” In-Ceiling Speaker

Key Features:
• Smooth Modern Flangeless Design
• One Piece Frame to Maximize Rigidity
• PRX™ Poly Resin CrossPoint Molds for Increased Rigidity
• PRX™ Poly Resin Doglegs
• Reinforced 2 Part Dogleg For Extra Thick Ceilings
• Extra Wide Threaded Screws for Quick Dogleg Fastening
• XTS™ Moisture Seal Treated Crossover

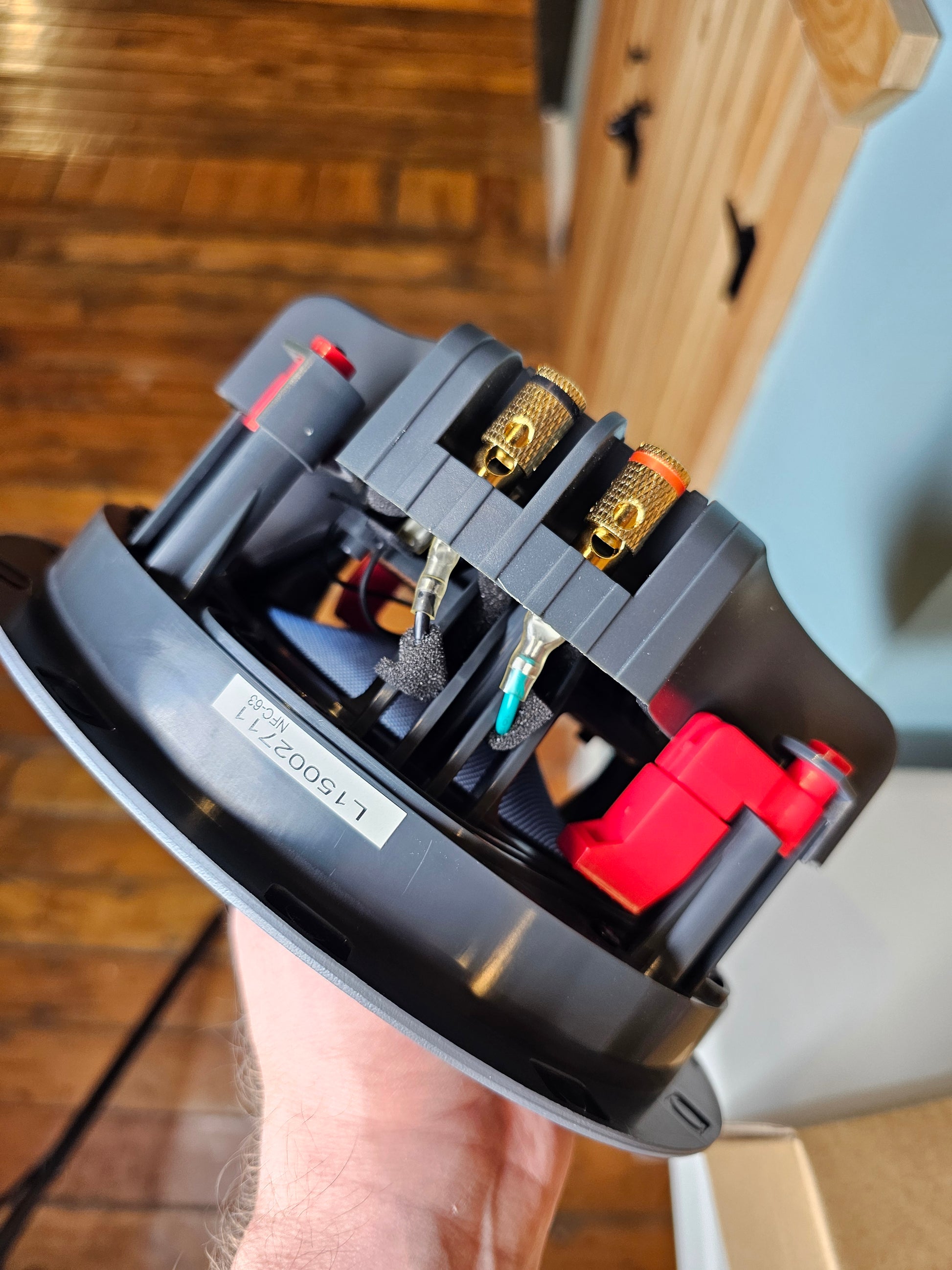

• Gold Plated Spring Loaded Push Terminals
• Dual Coated (Zinc and Powder) Grill firmly attached with Neodymium Magnets
• Removable Scrim Cloth
• LIFETIME WARRANTY

Mechanical Specifications:
• Total Diameter with Grill: 9.6875“ (246mm)
• Mounting Depth: 4″ (100mm)
• Cut Out Dimensions: 8.25” (210mm)
• Pre-Construction: Use PCBC-6

Acoustic Specifications:

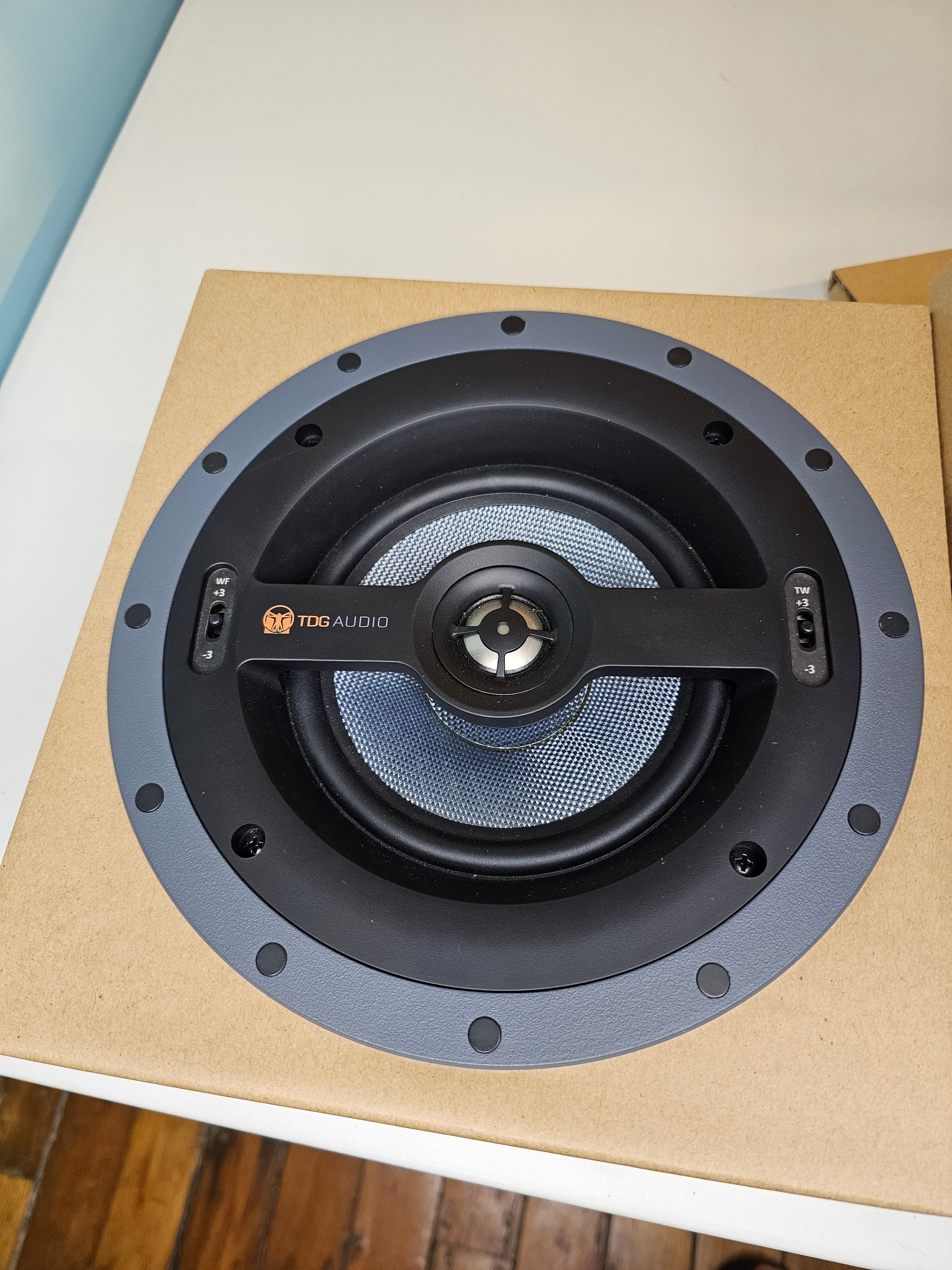

• 6.5″ (165.1mm) Kevlar Trueform™ Woofer
• 1″ (25.4mm) Diamond Cut Titanium Pivoting Tweeter
• +/- 3db Tweeter & Bass Settings
• 5/150 WPC Power Handling
• 89dB SPL
• Impedance: 8ohms (-3dB woofer switch) / 6ohms (OdB) / 4ohms (+3dB)
• Frequency Response 45Hz – 20kHz
• LIFETIME WARRANTY
