Key Features: • IP-66 Rating for Protection against heavy sea and powerful jets of water • Conforms to Military Standard 810 G for humidity, salt spray, temperature and UV • Smooth Modern Flangeless Design • One Piece Frame to Maximize Rigidity • PRX™ Poly Resin CrossPoint Molds for Increased Rigidity • PRX™ Poly Resin Doglegs • Reinforced 2 Part Dogleg For Extra Thick Ceilings • Extra Wide Threaded Screws for Quick Dogleg Fastening • XTS™ Moisture Seal Treated Crossover • Gold Plated Spring Loaded Push Terminals • Stainless Rust Resistant Grills firmly attached with Neodymium Magnets • Removable Scrim Cloth • LIFETIME WARRANTY

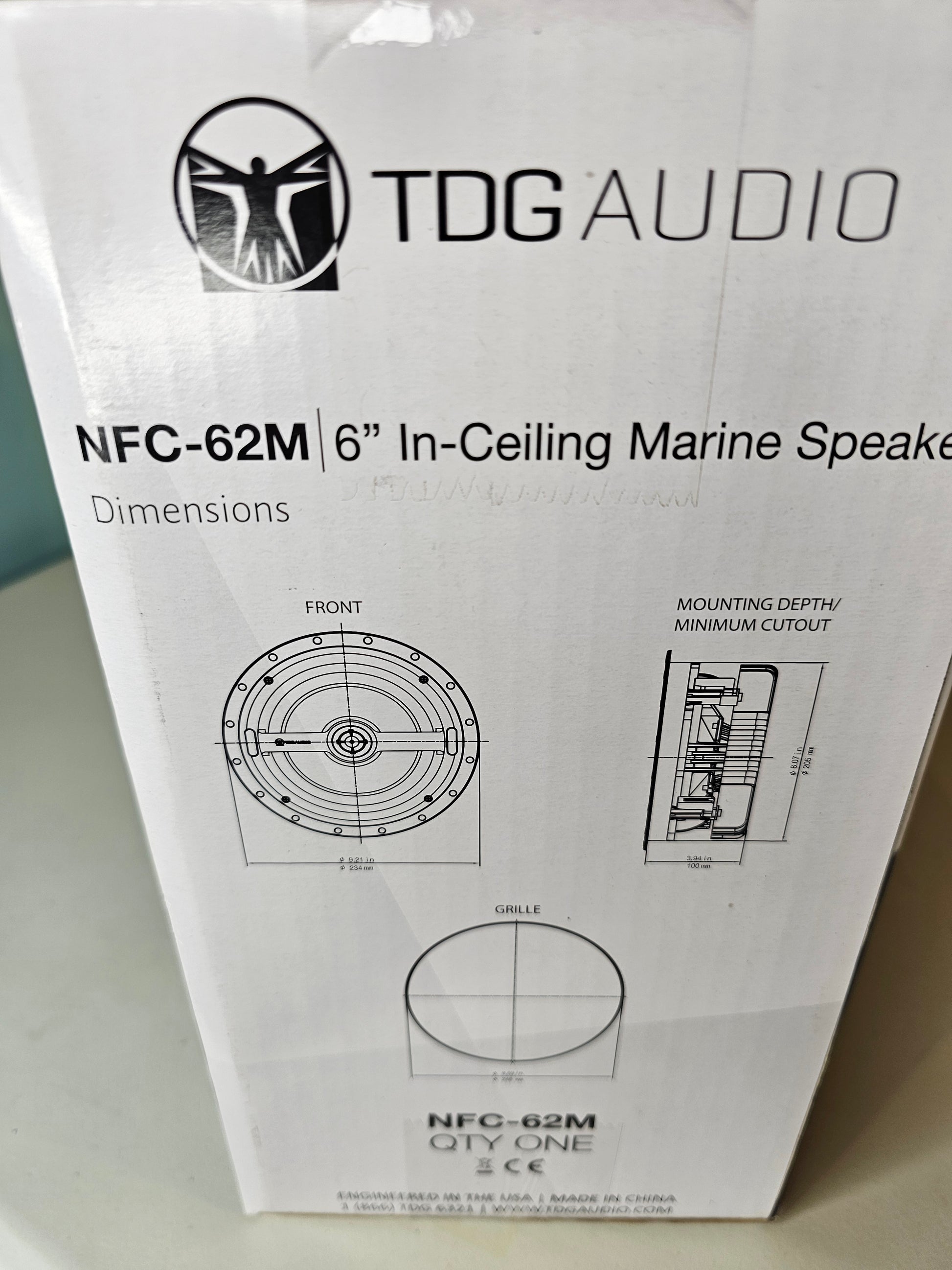

Mechanical Specifications: • Total Diameter with Grill: 9.69″ (246mm) • Mounting Depth: 4″ (100mm) • Cut Out Dimensions: 8.25” (210mm) • Pre-Construction: Use PCBC-6
Acoustic Specifications: • 6.5″ (165.1mm) Aluminum Trueform™ Woofer • 1″ (25.4mm) Aluminum HDAlloy™ Pivoting Tweeter • IP-66 Rating for Protection against heavy sea and powerful jets of water • 5/110 WPC Power handling • 88dB SPL • Frequency Response 47Hz – 20kHz • LIFETIME WARRANTY
