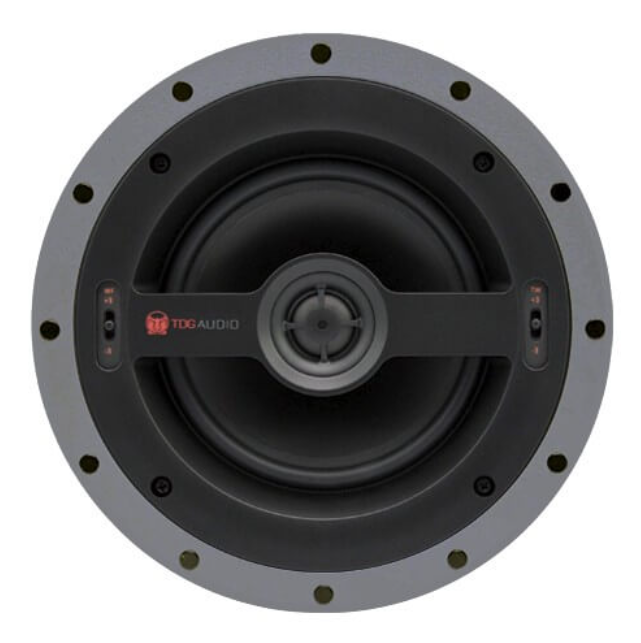

TDG NFC-61

6.5” In-Ceiling Speaker

Key Features:
• Smooth Modern Flangeless Design
• One Piece Frame to Maximize Rigidity
• PRX™ Poly Resin CrossPoint Molds for Increased Rigidity
• PRX™ Poly Resin Doglegs
• Reinforced 2 Part Dogleg For Extra Thick Ceilings
• Extra Wide Threaded Screws for Quick Dogleg Fastening
• XTS™ Moisture Seal Treated Crossover
• Gold Plated Spring Loaded Push Terminals
• Dual Coated (Zinc and Powder) Grill firmly attached with Neodymium Magnets
• Removable Scrim Cloth
• LIFETIME WARRANTY

Mechanical Specifications:
• Total Diameter with Grill: 9.6875” (246mm)
• Mounting Depth: 4″ (100mm)
• Cut Out Dimensions: 8.25” (210mm)
• Pre-Construction: Use PCBC-6

Acoustic Specifications:
• 6.5″ (165.1mm) Polypropylene Trueform™ Woofer
• 1″ (25.4mm) Soft Dome Pivoting Tweeter
• +/- 3dB Tweeter & Bass Settings
• 5/90 WPC Power Handling
• 88dB SPL
• Impedance: 8ohms (-3dB woofer switch) / 6ohms (OdB) / 4ohms (+3dB)
• Frequency Response 48Hz – 20kHz
• LIFETIME WARRANTY
