IR Kit

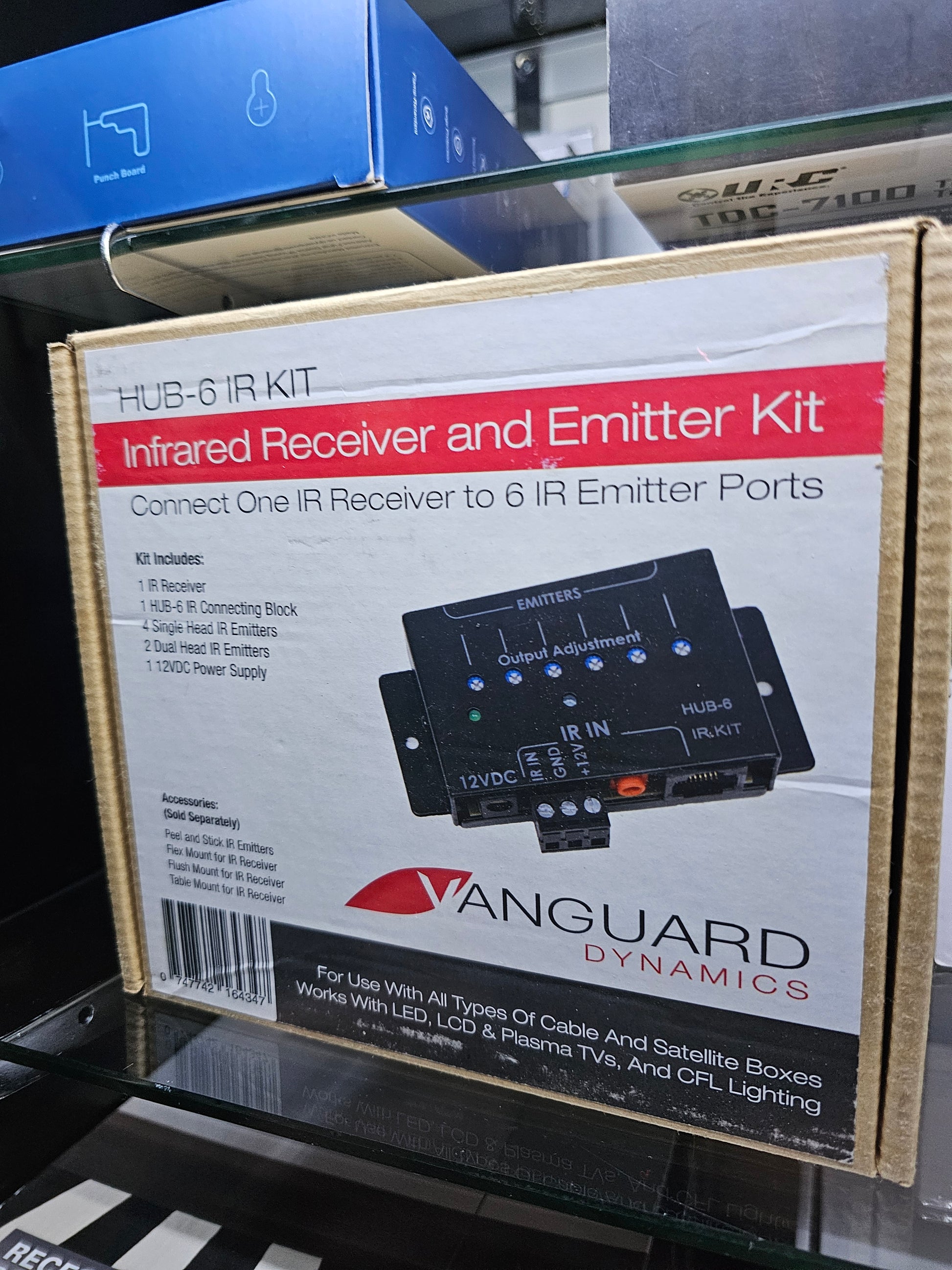

The Vanguard Dynamics IR Kit can pick up signals from IR remote controls and then pass to the HUB-6 Connecting Block for distribution of IR signals to your devices via IR Emitters.

The IR Receiver can be mounted to any flat surface (furniture recesses, under shelves, etc) using double-sided adhesive tape. Alternatively, the IR Receiver can be mounted in the optional Table Mount (IR-TM) for tabletop placement, Flush Mount (IR-FM) for installation in a cabinet door or cabinet panel, or Flex Mount (IR-XM) which can be attached to the side or rear of a TV or cabinet.

If you need to control more devices or have equipment in separate cabinets, you can order additional HUB-6 and daisy chain them via the RJ45 jack. (See Fig. 3)

- Connecting Block, 1 IR Receiver, 4 x Single Emitters, 2 x Dual Emitters, 1 x Power Supply
